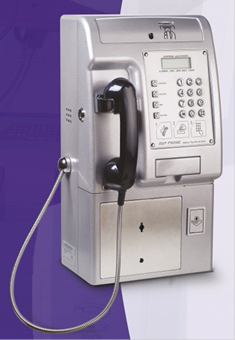

VOIP Public Payphone

1. Low cost public phone for caller via existed internet network

2. Best international call service for customers cant reach internet like hotel, college dorm, airport and restaurant for foreign works

3. Utilize existed internet network without build up new network





1. Call control protocol: SIP(RFC-3261) or H.323 V4 or MGCP

2. Transmit Power: 6 Watts

3. Delayed (End to End): <100ms

4. Interface: FXS + FXO Pass through

5. Echo cancellation: G.165/G.167 16ms

6. IP Address: PPPoE, DHCP Client, Static IP

7. Transport Protocols: RTP/RTCP,UDP/TCP

8. LCD: 122/32 Graphics, Dialed Number, Coin Value, Remaining Credit, Reminding Message, Self-Diagnostic Message and Revenue Information

9. Function Keys: Voice Amplification, Language Choice, Redial, Follow-on-Call

10. Housing: Front Side: Al Alloy, Back Side: Steel (SPCC-SD)

11. Coin Slot: Single Slot for multiple kind of coin

12. Coin mechanism: Distinguish 8 types of coin based on diameter, thickness and material

13. Coin Box: Coin box is sealed automatically as it is pulled out of the coin box department. The door of coin box compartment has double lock system. Coin box is made of 3mm stainless steel

14. Dimension: H:529mm x W 276mm x D 235mm

15. Weight: 23Kgs

Product Specification
