EFFL (External-Electrode Flat Fluorescent Lamp) X

Lu EFFL Lamp

  Specification

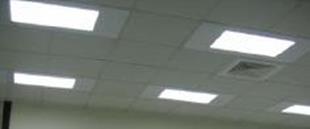

EFFL is an innovated overhead lighting product that highly improved current T5 lighting fixture performance. It can also provide high ROI( Return of Investment) by replacing the EFFL lamp fixture from traditional T5 lamps fixtures.

T: +886-2-2721-3037

F: +886-2-2731-6831

E: service@luminarylnh.com

  Features



1. Low maintenance fee

2. Less glare

3. 20% less power consumption than equivalent T5 overhead lamp set

4. Near to nature light spectrum

5. Better brightness adjustment and even lighting distribution

6. Low surface temperature around 45 J

7. No reflection shields required

8. Universal power voltage applied

9. Less flickering

10. Better lighting fixture efficiency ( above 92%)

11. Better operating temperature ( -15~40 J)

12. Greater lighting area

13. UV free

  Body

  Lu-550

  Lu-1150

  Number of lamp

  10

  10

  Watt per lamp

  6W

  10W

  Lm/W

  45

  45

  Life time

  50,000 hrs

  50,000 hrs

  Lamp current

  7 mA

  7 mA

  Color temp

  6,500K

  6,500K

  Dimension (LxWxH) mm

  600x600x50

  600x1,200x90

  Weight

  4.5 Kgs

  9 Kgs

  Ballast

  Input voltage

  AC100~240V

  AC100~240V

  Input power

  60W

  120W

  Input frequency

  50 / 60 Hz

  50 / 60 Hz

  Output frequency

  44KHz

  44KHz
