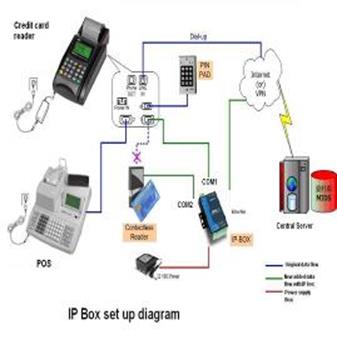

IP Box for Credit Card Reader Data Transaction

1. Move traditional dial up transaction into  IP base transaction, reducing significant

 transaction cost

2. Cigarette pack size

3. Auto detectable 10/100Mbps Ethernet port

4. Built-in 15KV ESD protection for all serial signals

5. Pair connection mode for  connecting two serial devices over a network without a PC

6. Automatic IP configuration protocols

    (DHCP,BOOTP)

Features:

 Specifications

LAN: Ethernet: 10/100 Mbtps. RJ45

Serial Interface:

IP5210: Interface:RS232, 2ports(RJ 45, 8 pins), Signal:TxD,RxD,RTS, CTS,DTR,DSR.DCD.GND

IP5230: Interface: RS232,RS422/485, 1 port for RS232, 1 port for RS-422/485

Signal:RS-232:TxD,RxD,RTS,CTS,GND

      RS-422:Tx+,Tx-,Rx+,Rx-,GND

      RS-485(2-wire): Data+,Data-,GND

      RS-485(4 wire): Tx+,Tx-, Rx+,Rx-,GND

Power consumption:IP5210:305mA at 12V(max),IP5230:347.1mA at 12V(max.)

Dimensions(WxHxD):67x100.4x22mm(2.64x3.95x0.87 in)

Gross Weight:IP5210:0.135kg(0.3lb), IP5230:0.14kg(0.31lb)

Built-in buzzer, real time clock and watchdog timer

Operating temperature: 0 to 55°(32 to 131°F), 5 to 95% RH

Storage temperature: -20 to 85°(-40 to 185°F), 5 to 95% RH

EMC: CE:EN55022 / EN55024 Class A

FCC:FCC Part 15 Subpart B Class A

Safety: UL:UL60950-1, TÜV:EN60950-1



IP box has been in service with  Mastercard Paypass system for more than 2,000 sites in Taiwan. Read More about Paypass on fast track in Taiwan  >
