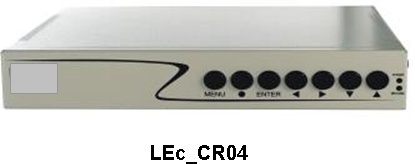

DIY type DVR( Surveillance System) |
|
Features
● MPEG4 Video Compression (Transmission Via network) ● MPEG2/MPEG4 like (DVD/MPEG4 like quality for recording & playback) ● Motion Detection ● The most Compact Shape ● USB and LAN Function ● Simplex Functions |
|
T: +886-2-2721-3037 F: +886-2-2731-6831 E: service@luminarylnh.com |
|
Video Compression |
MPEG4 (Transmission Via network), MPEG2(DVD quality for recording & playback) |
|
|
Number of Video Inputs |
4 ( NTSC / PAL ) Channel. 1V P-P / 75 Ohm / BNC |
|
|
Video output
|
|
|
|
NTSC |
PAL |
|
|
Resolution of Image Stored |
720*240 |
720*288 |
|
Video recording |
720*240 |
720*288 |
|
Recording frame rate |
60 field / sec |
50 field / sec |
|
Display |
Multiple screen modes: 4CH, 1CH. |
|
|
Recording Mode |
Manual record - Motion - Schedule |
|
|
Hard disk storage |
All capacities of hard disks currently released ( 24 Bits, 48 Bit supported ) |
|
|
Playback Mode |
FF : 2X~6X, REW : 2X~6X, STILL & JOG functions |
|
|
Motion Detection |
Internal & External Mode Clock, Settable Window/Level. |
|
|
Network |
TCP/IP, DHCP, DDNS |
|
|
Power source |
DC 12V / 2.0A (or 2.5A) IN |
|
|
Monitor |
Real time display ( 720*480 / 720*576 ) |
|
|
Weight |
Net : 1.2kgs / Gross : 1.6kg |
|
|
Dimension |
Non-packing : 22.5*21.5**3.8cm / packing : 32*24.5*6cm |
|
